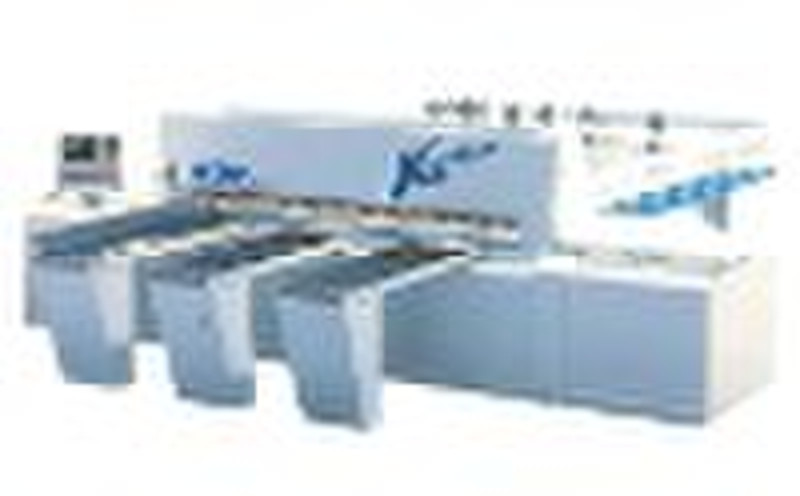

Panel saw

HD tounch screenPC control system(optional)The grippers is made up of cast aluminum, avoiding scratch the board surface.Adopting Simens motor with power of 25HP, the max. thickness of cutting can reach to 100mm.Side compressing wheel system(optional).Clamp driving uses rack&pinion which is imported from Switzerland,it makes the cutting diameter with high precise.Saw socket driving uses rack&pinion style.The stell ball floating working table,avoiding scratch the board.Main technical data ModelKDT-830The max.cutting capacity3100x3100x100The max.cutting speed60m/minSaw socket back speed60m/minThe max.feeding speed80m/minThe diameter of main saw355mm/400mmThe diameter of scoring saw200mmMain sawmot power18.5kwScoring sawmotor power1.5kwfeeding servo motor power3kwworking pressure0.6MPa
